Alfa Laval heat exchanger plates are meticulously designed and manufactured with high-quality materials. They offer excellent thermal performance, efficient heat transfer, and corrosion resistance. These plates are versatile, customizable, and ensure reliable operation in a wide range of industrial applications.
| Model | M3 | M6B | M6M | M6MX | M10B | M10M | M10MX | M15B | M15M | M20B | M20M |
| pic |  |  |  |  |  |  |  |  | |||
| Plate | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Gaske | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Model | T20M | T20M | T20B | T20P | M30 | M60 | M185 | MA30M | MA30S | MX20B | MX25M | MX25B |
| pic |
|
| ||||||||||
| Plate | √ | √ | √ | √ | √ | √ | X | √ | √ | √ | √ | √ |
| Gaske | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Model | A10B | A15 | A15B | A20 | A20B | A35 | AM10 | AM10B | AM20 | AM20B | AM20S | AM20N |
| pic |  |  |  |  |  | |||||||
| Plate | √ | X | √ | √ | √ | X | √ | √ | √ | √ | X | X |
| Gasket | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Model | AX30 | AX30B | AK20 | T2B | T4 | T5B | T5M | T8B | T8M | T20S | T35S | T35P |
| pic |
| |||||||||||
| Plate | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Gasket | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Model | T45M | T50M | TL3B | TL3P | TL6B | TL10B | TL10P | TL10S | TL15B | TL20P | TL35B | TL35S | TL35X |
| Plate | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Gasket | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Model | TS6M | TS6L | TS20M | TS35P | TS35M | TS50M | P2 | P5 | P13 | P14 | P16 | P22 | P26 |
| pic |  |  |  |  | |||||||||
| Plate | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Gasket | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |

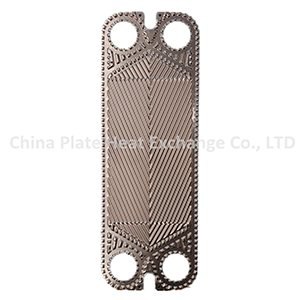

| Model | P28 | P30 | P31 | P32 | P36 | P41 | P105 | P190 | P252 | Clip3 | Clip6 | Clip8 |
| pic |  |  |  |  | ||||||||
| Plate | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Gasket | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Model | Clip10 | Clip15 | C3 | C6 | C8 | C10 | WideGap-100S | WideGap-350S | WideGap-350X | AlfaVap-650 | AQUA-80 | BL400 |
| Plate | √ | √ | √ | √ | √ | √ | √ | √ | √ | X | X | √ |
| Gasket | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Model | M3-DoubleWall | M6B-DoubleWall | M6M-DoubleWall | M10B-DoubleWall | M10M-DoubleWall | M15B-DoubleWall | M15M-DoubleWall | TL10B-DoubleWall | TL10P-DoubleWall |
| Plate | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Gasket | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Model | M6MW semi-welded | M10BW semi-welded | A15BW semi-welded | MK15BW semi-welded | T20MW semi-welded | M20BW semi-welded | MA30W semi-welded | AX30BW semi-welded | EC350 semi-welded | EC500 semi-welded | AC400 semi-welded | AC600 semi-welded |
| Plate | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Gasket | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
